Description

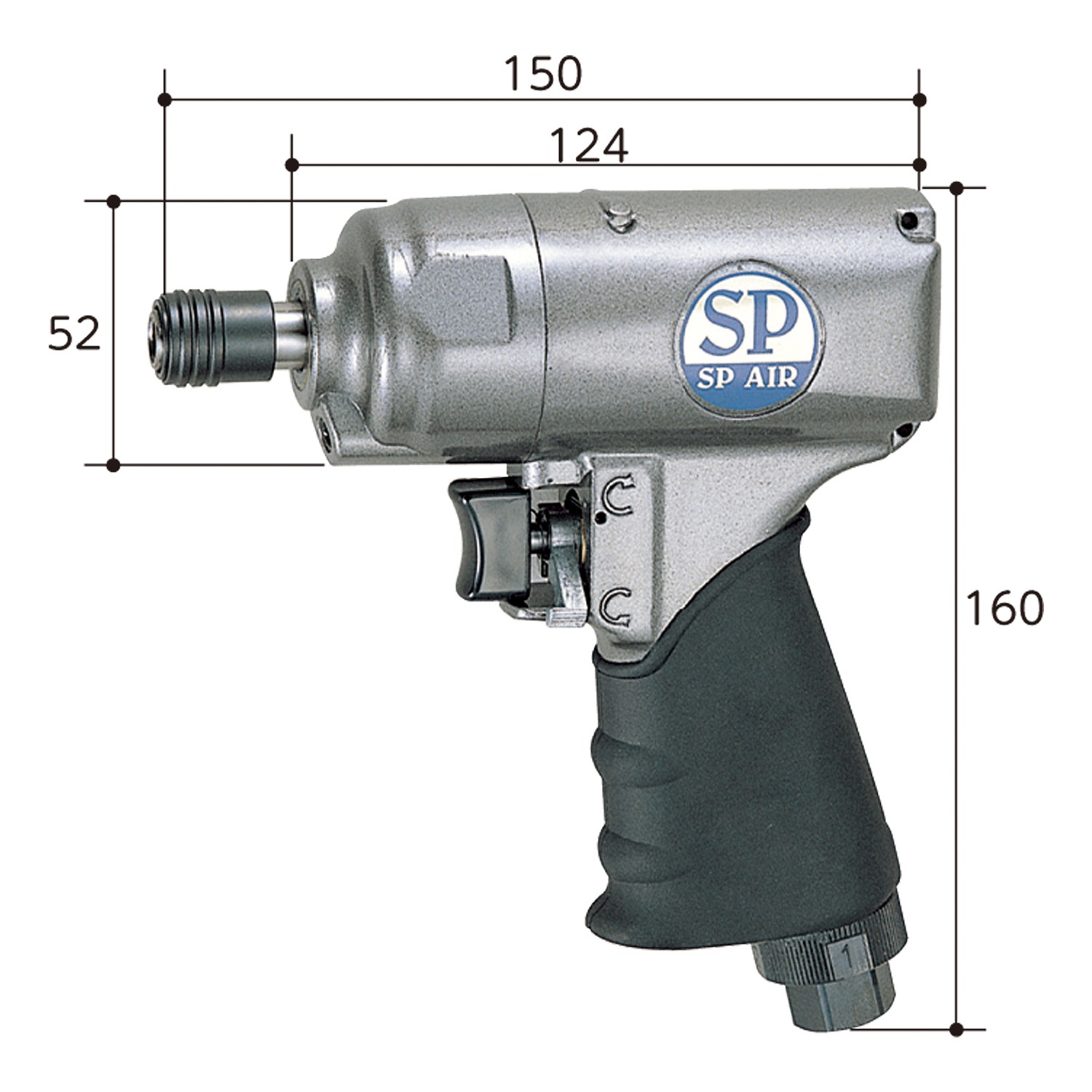

| Ditail | Bit size(mm) | Capacity standard screw O/D(mm) | Torque renge(N・m) | Air consumption(m3/min) | Air pressure(MPa) | Air hose inner O/D(mm) | Overall Length(mm) | Weight(g) | JAN |
|---|---|---|---|---|---|---|---|---|---|
| 6.35mmHEX | HEX6.35 | 6 to 8 | 7 to 70 | 0.4 | 0.62 | 9.5 | 150 | 1000 | 4545695000943 |
Install method
Bit sleeve retainer
Starting type
Trigger
Adjustment dial step
Air inlet regulator dial : 4
Exhaust
Rear
Hose Coupling
1/4″NPT
PKG Dim (mm)
213 x 170 x 73
Applicable
A14 bits, A16 bits
